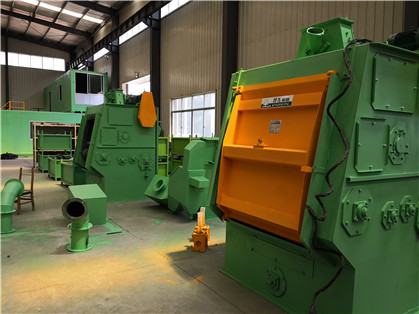

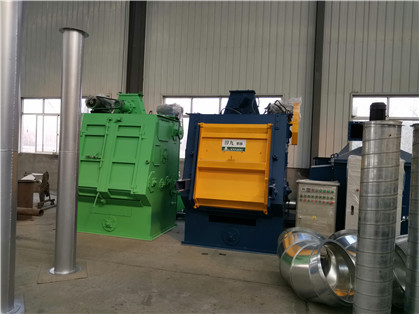

Tumblast Shot Blasting Machine for cleaning casting and Small fittings
1. Belt Shot Blasting Machines are used for treatment small work pieces as following:Screws, steel bolts, in preparation for next galvanizing treatment,Aluminum die-castings and its alloys,Brass and steel hot pressing,Various mechanical components etc. and small casting parts , forge parts and soon on.
2. The rubber belt tumblast shot blasting machine is fitted with endless rubber conveyor belt gives gentle of turning of the parts to be shot blasted.The tumblast shot blasting is suitable for foundry, forging, surface preparation, aluminum deburring.
3.Applications:
Shot peening of heavily stressed components.
Desanding and descaling of castings and forgings.
Preparation of surfaces for protective coating.
Cleaning of castings and forgings.
Aesthetic finishing of dye castings of aluminum, zinc and alloy steels.
Removal of heat treated scales
This shot blasting machine will equipped with two kinds of dust collector, because the dust is so more.
Our engineer designed new multi-tube dust cleaner for Stone Block shot blasting machine.
Technical Data
| Parameter | Unit | 3GN | 8GN | 8GN-5R | 15GN |
| Productivity | t/h | 0.6-1.2 | 2-4 | 2-3 | 3-5 |
| Feeding Amount | kg | 220 | 650 | 650 | 1000 |
| Max Weight of SingleWorkpiece | kg | 12 | 32 | 32 | 55 |
| Diameter of end disk | mm | 650 | 1000 | 1000 | 1150 |
| Effective volume | m3 | 0.15 | 0.3 | 0.3 | 0.5 |
| Abrasive flowrate | Kg/min | 180 | 270 | 270 | 300 |
| Ventilation capacity | m3 | 2300 | 3500 | 3500 | 5000 |
| Total power | kw | 13.1 | 23.2 | 27.4 | 39.4 |
Tumble Belt Shot Blasting Machine will have Screw Conveyer, Blasting Chamber, Blast Wheel, Bucket Elevator,Separator
These machines are sturdy, rugged and proven across a wide variety of working conditions.The rugged design shot blasting machine
increase production, reduce cost, improves quality, faster and better shot blasting leads to faster machining, saving of power,
reduce rejection, cutting tool cost.The rubber conveyor belt is rugged and given long life.
Our company
1. Qingdao KNNJOO Machine INC.is a manufacturer specializing in the design and manufacture of Shot Blasting Machines and Shot Blasting Rooms for decades over 20 years in China.
2. Qingdao KNNJOO Machine INC.is design, manufacture and install innovative, economical and high quality shot blasting equipment and provide ongoing customer support through technical assistance and spare parts.
3. Qingdao KNNJOO Machine INC. have the best worker to provide you with a professional shot blasting machines knowledgeable and reliable sales team in order to meet your specific requirements.
4. Through ongoing training and hands on experience our personnel are able to offer you the best advise, technical expertise and cost reduction solutions to improve your performance.
Why choose us
Our shot blasting machine technology is leading the world, especially in Asia in the field of high-end shot blasting machines.
Process and technology are related to product life, use cost, work efficiency, maintenance cost
◎ Application of European shot blasting machine technology, independent research and development technology of 3 national
invention patents
◎15-75Kw high-end shot blasting machine successfully developed, exported to Germany and the United States, won the national
invention patent
◎High-end shot blasting model saves power consumption, high efficiency, low failure rate, and stability
◎ Strategic partners of China Construction Steel Corporation and Hangzhou Xiao Steel Corporation
◎ Minimal downtime to increase your productivity and better shot blasting modes
◎Bring a healthier working environment and adapt to a harsher working environment
